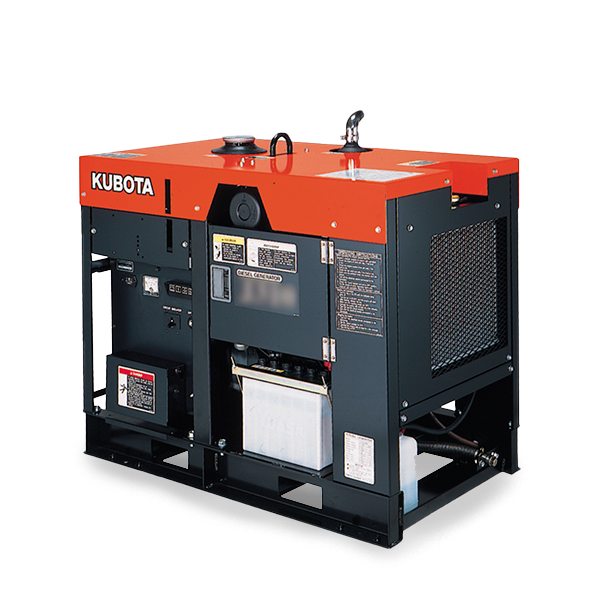

J114
J Series
- Prime Output 14.0 kVA (14.0 kW)
- Standby Output 15.4 kVA (15.4 kW)
- Frequency: 60 HZ
- Phase: Single
- special forklift openings enhances transportability.
Simple Maintenance
- Most gauges and filters are conveniently situated to simplify daily maintenance.
- A double element air filter is used in the J-Series for heavy-duty use, and to protect the generator from sand-caused damages.
Safety
- Automatically shut the engine down in case of abnormalities in oil pressure, water temperature, and when the Fan belt breaks.
- Protective covers are attached on all output terminals to prevent electric shocks.
| MODEL | Unit | J114 |
|---|---|---|
| Type | - | Revolving field, AC generator |
| Frequency | Hz | 60 |
| Standby Output | kVA (kW) | 15.4 (15.4) |
| Prime Output | kVA (kW) | 14.0 (14.0) |
| Voltage - Single Phase | V | 110/220 |
| Phase / Wire | - | 1/4 |
| Power Factor | - | 1.0 |
| No. of Poles | - | 2 |
| Insulation | Class | Rotor coil; class F, Stator coil; class B |
| Type of Coupling | - | Direct coupled |
| AMPS | ||
| Single Phase 110V | A | 63.6 x 2 |
| Single Phase 127V | A | N/A |
| Single Phase 220V | A | 63.6 |
| Single Phase 240V | A | N/A |
| Three Phase 220V | A | N/A |
| Three Phase 380V | A | N/A |
| Three Phase 415V | A | N/A |
| TERMINAL | ||
| Terminal | - | Available |
| DIESEL ENGINE | ||
| Type | - | Vertical, water-cooled, 4-cycle diesel engine |
| Model | - | D1005 |
| No. of Cylinders | - | 3 |
| Bore x Stroke | mm | 76.0 x 73.6 |
| Displacement | L | 1.001 |
| Engine Speed | rpm | 3600 |
| Continuous Rated Output | kW (HP) | 17.0 (22.8) |
| Lubricant (API classification) | - | above CD grade |
| Oil Capacity | L | 4.3 |
| Coolant Capacity | L | 3.3 |
| Starting System | - | Electric - 12 volt DC |
| SET | ||
| Fuel Consumption | - | Diesel fuel No.2 (ASTM D975) |
| at Full Load | L/h (gal./h) | 5.7 (1.5) |
| at 3/4 Load | L/h (gal./h) | 4.6 (1.2) |
| at 1/2 Load | L/h (gal./h) | 3.7 (1.0) |
| at 1/4 Load | L/h (gal./h) | 3.2 (0.8) |
| Fuel Tank Capacity - Continuous Operation Hours | L (gal.) | 79.0 (20.9) |
| at Full Load | h | 13.9 |
| at 3/4 Load | h | 17.3 |
| at 1/2 Load | h | 21.2 |
| at 1/4 Load | h | 25.1 |
| Battery (Ah/5 h) | - | 12 V (55 Ah) |
| Dimensions L x W x H | mm | 1215 x 611 x 922 |
| Approx. Net Weight | kg | 340 |
| Sound Level (Full Load at 23 ft. [7m]) | dB (A) | 81.0 |
| Emergency Stop System | - | In case of abnormal: Oil pressure, water temperature, fan belt broken |
