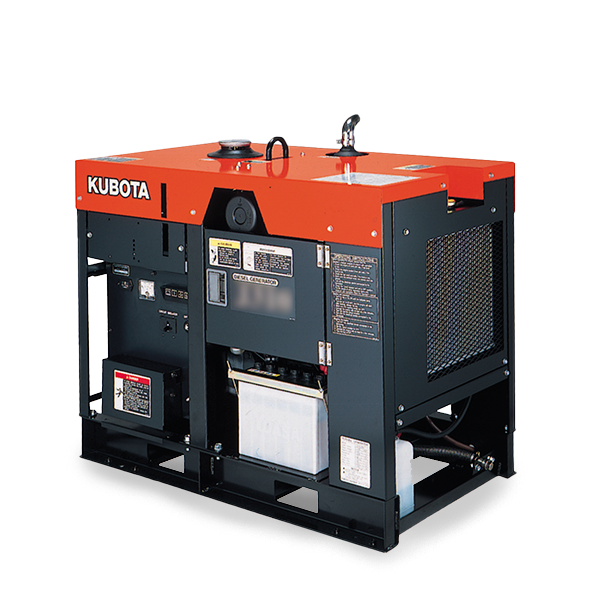

Kubota J116 generator

J116

J Series

  • Prime Output 16.0 kVA (16.0 kW)
  • Standby Output 17.6 kVA (17.6 kW)
  • Frequency: 50 HZ
  • Phase: Single
Features & Benefits
Specifications

Dependable

  • The generator and the engine are direct-coupled to ensure a more reliable power supply with minimum power loss.
  • The J-Series uses a transistor AVR to ensure a stable flow of current for most jobs.
  • The waveform distortion is kept to a minimum by the skewed rotor, while the damper winding protects the generator during short circuits, regulates voltage fluctuations during condensive loads, and withstands load fluctuations during condensive and non-linear loads.

Clean Emissions

  • This generator uses Kubota original E-TVCS combustion to produce less soot, HC and CO emissions.

Easy Operation

  • Advanced design and engineering minimized both space and weight for easy use and storage.
  • Key switch, voltage meter, circuit breaker, and warning lamps are all conveniently gathered on a drip proof control panel.
  • The larger capacity fuel tank enables longer periods of continuous operation on a single tank.

Transportability

  • One-point lifting eye and special forklift openings enhances transportability.

Simple Maintenance

  • Most gauges and filters are conveniently situated to simplify daily maintenance.
  • A double element air filter is used in the J-Series for heavy-duty use, and to protect the generator from sand-caused damages.

Safety

  • Automatically shut the engine down in case of abnormalities in oil pressure, water temperature, and when the Fan belt breaks.
  • Protective covers are attached on all output terminals to prevent electric shocks.
MODELUnitJ116
Type-Revolving field, AC generator
FrequencyHz50
Standby OutputkVA (kW)17.6 (17.6)
Voltage - Single PhaseV220
Phase / Wire-1/2
Power Factor-1.0
No. of Poles- 2
InsulationClassRotor coil; class F, Stator coil; class B
Type of Coupling-Direct coupled
AMPS
Single Phase 110VAN/A
Single Phase 127VAN/A
Single Phase 220VA72.7
Single Phase 240VAN/A
Three Phase 220VAN/A
Three Phase 380VAN/A
Three Phase 415VAN/A
TERMINAL
Terminal-Available
DIESEL ENGINE
Type-Vertical, water-cooled, 4-cycle diesel engine
Model-V1305
No. of Cylinders-4
Bore x Strokemm76.0 x 73.6
DisplacementL1.335
Engine Speedrpm3000
Continuous Rated OutputkW (HP)19.3 (25.9)
Lubricant (API classification)-above CD grade
Oil CapacityL5.7
Coolant CapacityL3.5
Starting System- Electric - 12 volt DC
SET
Fuel Consumption-Diesel fuel No.2 (ASTM D975)
at Full LoadL/h (gal./h)6.1 (1.6)
at 3/4 LoadL/h (gal./h)4.9 (1.3)
at 1/2 LoadL/h (gal./h)4.0 (1.1)
at 1/4 LoadL/h (gal./h)3.1 (0.8)
Fuel Tank Capacity - Continuous Operation HoursL (gal.)79.0 (20.9)
at Full Loadh12.9
at 3/4 Loadh16.2
at 1/2 Loadh19.8
at 1/4 Loadh25.4
Battery (Ah/5 h)-12 V (55 Ah)
Dimensions L x W x Hmm1300 x 611 x 922
Approx. Net Weightkg380
Sound Level (Full Load at 23 ft. [7m])dB (A)77.5
Emergency Stop System-In case of abnormal: Oil pressure, water temperature, fan belt broken
