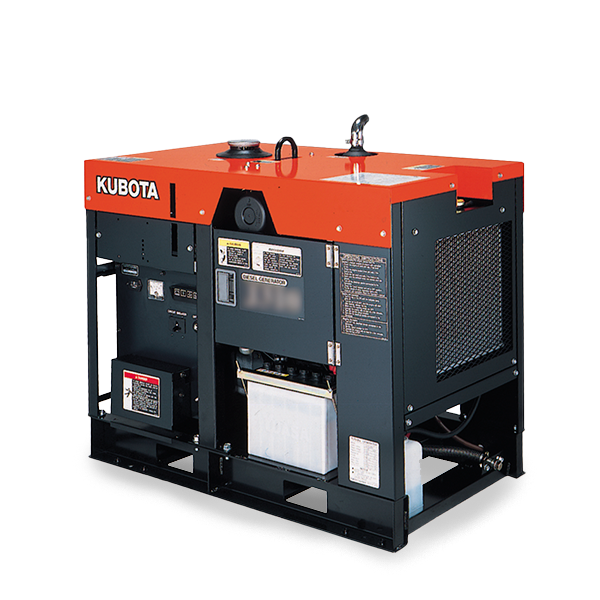

J Series

  • Prime Output 10.0 kVA (8.0 kW)
  • Standby Output 11.0 kVA (8.8 kW)
  • Frequency: 50 HZ
  • Phase: Three
Features & Benefits


  • The generator and the engine are direct-coupled to ensure a more reliable power supply with minimum power loss.
  • The J-Series uses a transistor AVR to ensure a stable flow of current for most jobs.
  • The waveform distortion is kept to a minimum by the skewed rotor, while the damper winding protects the generator during short circuits, regulates voltage fluctuations during condensive loads, and withstands load fluctuations during condensive and non-linear loads.

Clean Emissions

  • This generator uses Kubota original E-TVCS combustion to produce less soot, HC and CO emissions.

Easy Operation

  • Advanced design and engineering minimized both space and weight for easy use and storage.
  • Key switch, voltage meter, circuit breaker, and warning lamps are all conveniently gathered on a drip proof control panel.
  • The larger capacity fuel tank enables longer periods of continuous operation on a single tank.


  • One-point lifting eye and special forklift openings enhances transportability.

Simple Maintenance

  • Most gauges and filters are conveniently situated to simplify daily maintenance.
  • A double element air filter is used in the J-Series for heavy-duty use, and to protect the generator from sand-caused damages.


  • Automatically shut the engine down in case of abnormalities in oil pressure, water temperature, and when the Fan belt breaks.
  • Protective covers are attached on all output terminals to prevent electric shocks.
Type-Revolving field, AC generator
Standby OutputkVA (kW)11.0 (8.8)
Prime OutputkVA (kW)10.0 (8.0)
Voltage - Single PhaseV220
Voltage - Three PhaseV380
Phase / Wire-3/4
Power Factor-0.8
No. of Poles-2
InsulationClassRotor coil; class F, Stator coil; class B
Type of Coupling-Direct coupled
Single Phase 110VAN/A
Single Phase 127VAN/A
Single Phase 220VA9.1 x 3
Single Phase 240VA N/A
Three Phase 220VA N/A
Three Phase 380VA15.2
Three Phase 415VA N/A
Type-Vertical, water-cooled, 4-cycle diesel engine
No. of Cylinders-3
Bore x Strokemm67.0 x 68.0
Engine Speedrpm3000
Continuous Rated OutputkW (HP)10.4 (14.0)
Lubricant (API classification)-above CD grade
Oil Capacity3.4
Coolant Capacity3.0
Starting SystemElectric - 12 volt DC
Fuel Consumption -Diesel fuel No.2 (ASTM D975)
at Full LoadL/h (gal./h)3.1 (0.8)
at 3/4 LoadL/h (gal./h)2.4 (0.6)
at 1/2 LoadL/h (gal./h)2.0 (0.5)
at 1/4 LoadL/h (gal./h)1.6 (0.4)
Fuel Tank Capacity - Continuous Operation HoursL (gal.)37.0 (9.8)
at Full Loadh12.1
at 3/4 Loadh15.2
at 1/2 Loadh18.6
at 1/4 Loadh23.9
Battery (Ah/5 h)-12 V (36 Ah)
Dimensions L x W x Hmm995 x 593 x 860
Approx. Net Weightkg255
Sound Level (Full Load at 23 ft. [7m])dB (A)75
Emergency Stop System-In case of abnormal: Oil pressure, water temperature
