Dependable
Clean Emissions
Easy Operation
Transportability
Simple Maintenance
Safety

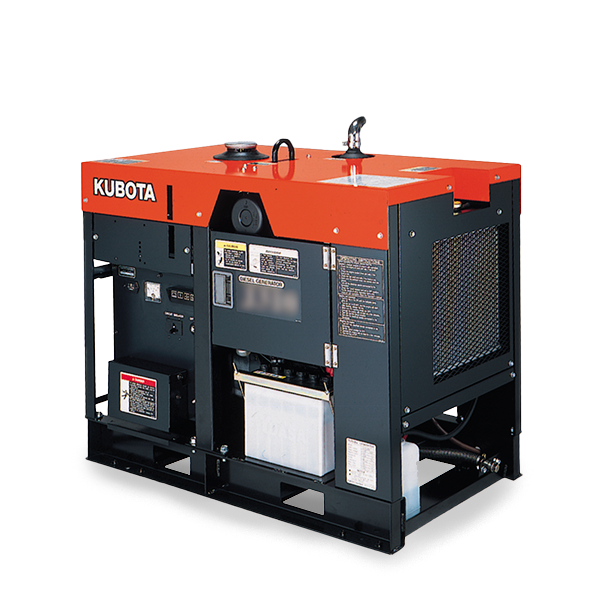

MODEL | Unit | J320 |
---|---|---|
Type | - | Revolving field, AC generator |
Frequency | Hz | 50 |
Standby Output | kVA (kW) | 22.0 (17.6) |
Prime Output | kVA (kW) | 20.0 (16.0) |
Voltage - Single Phase | V | 220 |
Voltage - Three Phase | V | 380 |
Phase / Wire | - | 3/4 |
Power Factor | - | 0.8 |
No. of Poles | - | 2 |
Insulation | Class | Rotor coil; class F, Stator coil; class B |
Type of Coupling | - | Direct coupled |
AMPS | ||
Single Phase 110V | A | N/A |
Single Phase 127V | A | N/A |
Single Phase 220V | A | 18.2 x 3 |
Single Phase 240V | A | N/A |
Three Phase 220V | A | N/A |
Three Phase 380V | A | 30.4 |
Three Phase 415V | A | N/A |
TERMINAL | ||
Terminal | - | Available |
DIESEL ENGINE | ||
Type | - | Vertical, water-cooled, 4-cycle diesel engine |
Model | - | V1305 |
No. of Cylinders | - | 4 |
Bore x Stroke | mm | 76.0 x 73.6 |
Displacement | L | 1.335 |
Engine Speed | rpm | 3000 |
Continuous Rated Output | kW (HP) | 22.0 (29.5) |
Lubricant (API classification) | - | above CD grade |
Oil Capacity | L | 5.7 |
Coolant Capacity | L | 3.5 |
Starting System | - | Electric - 12 volt DC |
SET | ||
Fuel Consumption | - | Diesel fuel No.2 (ASTM D975) |
at Full Load | L/h (gal./h) | 6.0 (1.6) |
at 3/4 Load | L/h (gal./h) | 4.8 (1.3) |
at 1/2 Load | L/h (gal./h) | 3.9 (1.0) |
at 1/4 Load | L/h (gal./h) | 3.1 (0.8) |
Fuel Tank Capacity - Continuous Operation Hours | L (gal.) | 79.0 (20.9) |
at Full Load | h | 13.1 |
at 3/4 Load | h | 16.4 |
at 1/2 Load | h | 20.1 |
at 1/4 Load | h | 25.7 |
Battery (Ah/5 h) | - | 12 V (55 Ah) |
Dimensions L x W x H | mm | 1300 x 611 x 922 |
Approx. Net Weight | kg | 380 |
Sound Level (Full Load at 23 ft. [7m]) | dB (A) | 77.5 |
Emergency Stop System | - | In case of abnormal: Oil pressure, water temperature, fan belt broken |
